SAE MAP3439A
Original price was: $103.$62Current price is: $62.
O-Ring Groove Design for Metric O-Ring Seals Used in Static Axial Compression Applications Specifically for Engine and Engine Control Systems
| Published by | Publication Date | Number of Pages |
| SAE | 2021 | – |

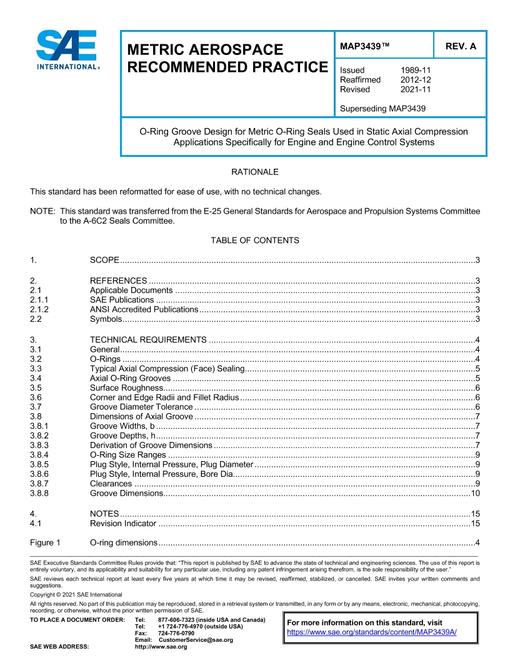

SAE MAP3439A – O-Ring Groove Design for Metric O-Ring Seals Used in Static Axial Compression Applications Specifically for Engine and Engine Control Systems
This recommended practice provides the design criteria for static elastomeric O-ring seals used specifically in engine and engine control systems. It provides axial compression (face type) groove dimensions for aerospace metric O-ring sizes specified in MA2010. The conditions considered to formulate the design criteria are also described e.g. seal squeeze and groove volume to accommodate O-ring swell.
Product Details
- Published:
- 11/23/2021
- File Size:
- 1 file 580 KB
- Note:
- This product is unavailable in Ukraine Russia Belarus
