SAE MAP1572A

Original price was: $41.Current price is: $25.

Metric Stud Holes for Aerospace Electrical and Electronic Wire Terminating Devices

Published by	Publication Date	Number of Pages
SAE	2021	–

Description

SAE MAP1572A – Metric Stud Holes for Aerospace Electrical and Electronic Wire Terminating Devices

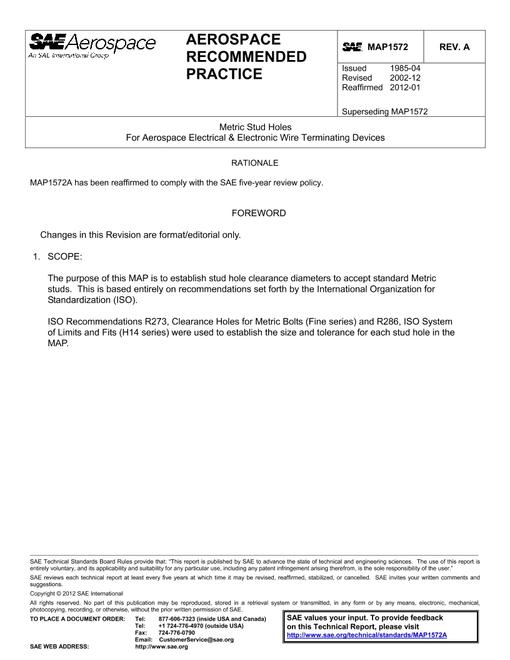

The purpose of this MAP is to establish stud hold clearance diameters to accept standard Metric studs. This is based entirely on recommendations set forth by the International Organization for Standardization (I.S.O.). ISO Recommendations R273 Clearance Holes for Metric Bolts (Fine series) and R286 ISO System of Limits and Fits (H14 series) were used to establish the size and tolerance for each stud hold in the MAP.
